Specification BM-180/SP:
Magnification: 40X- 1600X
Optical Head: Sliding Binocular Head, 45° inclined, 360° rotatable,
Pair Eyepiece WF 10X /18 mm Widefield
Travel area 75 x 50 mm, Right hand stage handle
Total focusing range 20 mm., Safety autofocus stop unit.
Abbè Brightfield condenser, n.A. 1,25, Integrated Iris diaphragm and filter tray. With rack & pinion height
Interpupillary Distance 55 - 75 mm
Nosepiece: Quadruple revolving nosepiece
Eyepiece: Pair Eyepiece P 16X
Objectives: BOECO Semi-plan Achromat DIN Objective 4x/0.10, 10x/0.25, 40x/0.65 spring loaded, 100x/1.25 Oil spring loaded
Stage: Double layer mechanical specimen stage. 140 x 140 mm
Focusing: Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division.
Illumination: 6V 20W Halogen, light intensity adjustable.
Body /power: Sturdy body with supportive rubber and inbuilt power supply 110-240V
Dimension: 170(W) x 250(D) x 375(H) mm
Netweight 7,65 kgs, Grossweight 9,5 kg
Models:
BOE 1800.200 BM-180/SP Binucolar, Sliding Semi-plan-Achromatic 4X, 10X, 40X, 100X (Oil) 220 V
BOE 1800.201 BM-180/SP Binocular, Sliding Semi-plan-Achromatic 4X, 10X, 40X, 100X (Oil) 110 V
BOE 1800.230 BM-180/T/SP Trinucolar, Semi-plan-Achromatic 4X, 10X, 40X, 100X (Oil) 220 V
BOE 1800.231 BM-180/T/SP Trinocular, Semi-plan-Achromatic 4X, 10X, 40X, 100X (Oil) 110 V
BOE 1800.200-LED Binocular Model BM-180/SP as above but with 9V/6W LED illumination and rechargeable battery
Download brochure pdf 296 KB

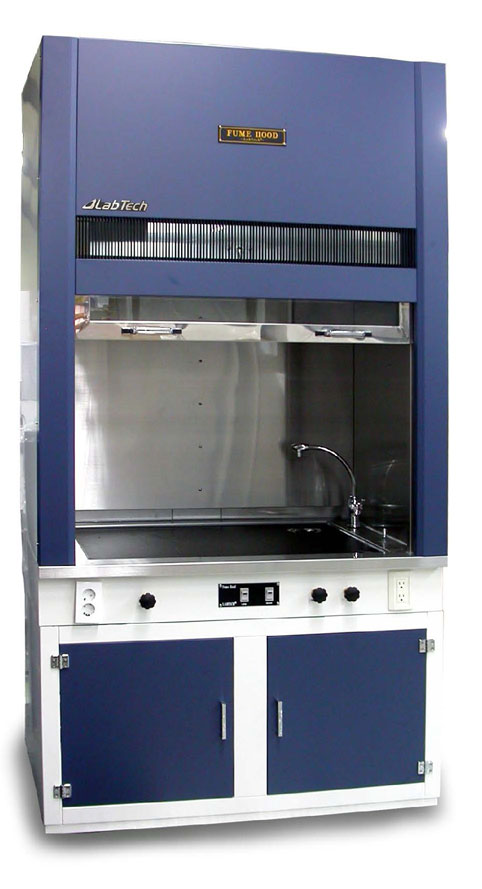

LABTECH FUME HOOD LFH-120 SCI Specification:
