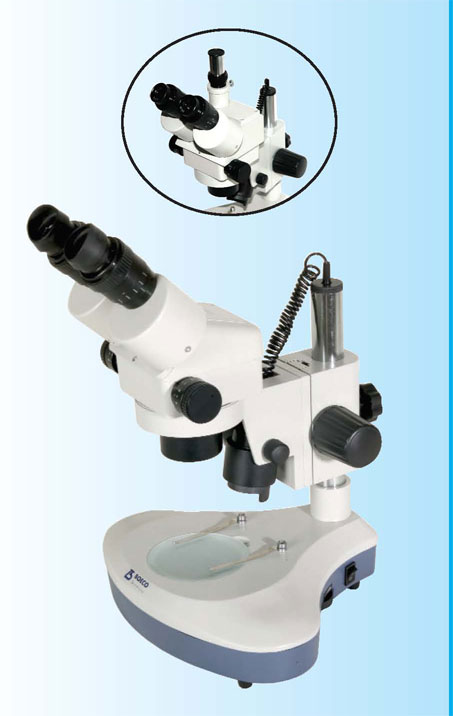

 BOECO MICROSCOPE ZOOM STEREO ( BINOCULAR )
MODEL BTB-3A
Specification BTB-3A:
Optical head: Binocular head inclined at 45° (Optional : Trinocular)
Interpupillary Distance 55 – 75 mm
Field of View: 28,0 to 4.5 mm diam.
Eyepiece: WF10X/20 eyepieces with eyeshadow
Eyepiece dioptric adjustment range ± 5D Working distance: 95 mm
Zoom Optics: 0,7X to 4,5X , Zoom ratio 1:6,5
Illumination: 2-way illumination switch allows upper and lower illumination.
Transmitted (lower) halogen light source 6V / 20 W,
Incident (upper) halogen light source 6V / 15 W with reflector.
Stage Plate: Frosted glass stage plate and black/white reversible stage plate
Base: Stable 300 x 225 mm base, fitted with anti-skid rubber feet
Dimensions: 300 (W) x 225 (L) x 300 (H) mm, Netweight 6,15 kg
Voltage : 220 V or BTB-3A, 110 V Optional
Optional : Wide Field Eyepiece WF 20x, pc, for BTB-3A
Harga Rp 15.000.000,- tidak termasuk pajak, franko Yogyakarta. Harga berlaku 1 Mei 2013.
Download brochure pdf 192 KB
|
